Tektronix 455

My second scope was the wonderful Tektronix 455 – a great analog scope with lots of great features – about 100 times better than my first Soviet C112 scope. Reasons:

Bandwidth50 MHz10 MHz
Number of channels21
Z - modulation (beam intensity channel)YesNo
Screen sizeBigVery small
Trigger modes/sources/combinations of themA lotThe basic ones
XY modeYesNo
Multimeter(Voltage, ohms)NoYes
A truckload of other cool featuresYesNo

I had to sell it to buy my current digital scope, but I remember it well 🙂 Good times…

If you need the manual, I have it in PDF form, just ask me for it.
Here are some photos – while looking for any pics, I couldn’t find any. So, here are some pictures of the scopes innards:

DSCN2081 DSCN2082 DSCN2083 DSCN2084

Some nasty ASIC is under the heatsink…

DSCN2085 DSCN2086

A part is missing! They stole my parts!!!

DSCN2095 DSCN2096

Nice wavy routing 🙂

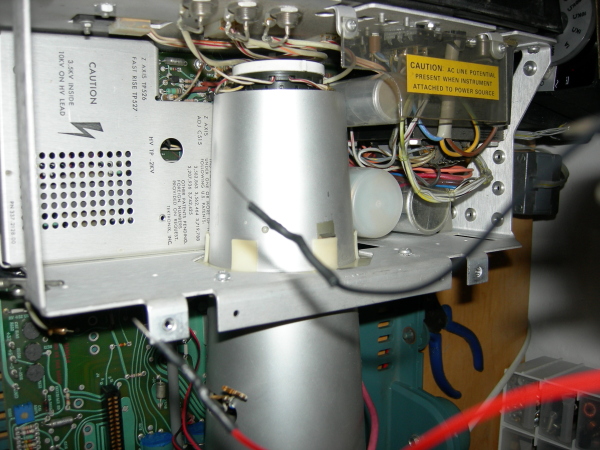

DSCN2097 DSCN2098

Note the mechanical connections to various control elements.


Note the funny delay line above.

DSCN2100 DSCN2101
